drawings of the Shark [ Return to Home Page ] |
L.O.A.: 24' (7.34 m) L.W.L.: 20' (6.12 m) Beam: 6'10" (2.09 m) Draft: 3'2" (0.96 m) Disp: 2,100 lbs. (955 Kg.) |
Ballast: 700 lbs. (318 Kg.) I = 20'0" (6.096 m) P = 23'0" (7.010 m) J = 7'4" (2.235 m) E = 10'2" (3.099 m) |

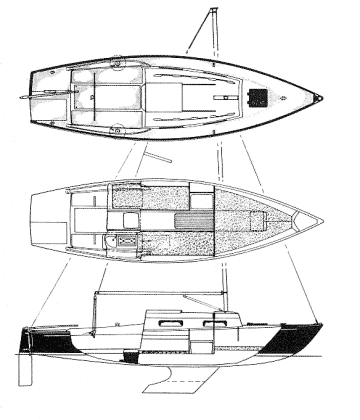

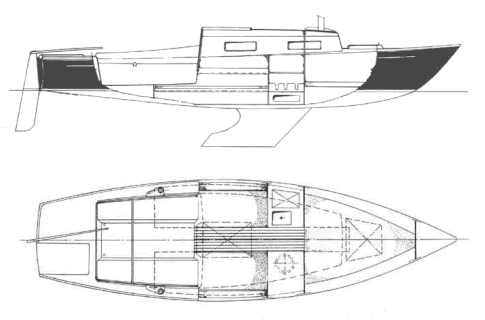

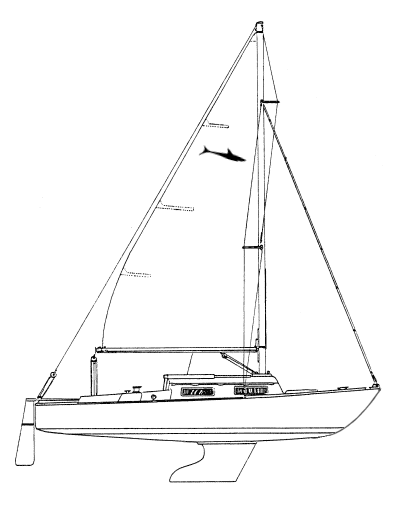

Line drawing showing the Shark sailplan (probably from the days when the Sharks were being built by C&C in the late 1960s or early 1970s). Line drawing of one of the earlier Sharks (probably when they were being built by Hinterhoeller in the early 1960s). Line drawing of a Shark when they were built by Halman Manufacturing ( probably in the late 1980s) . © Michael McGoldrick, 2001
|
